Forst St6 St8 Tr6 Tr8 Xr8 Flywheel & Bonnet Sensor Switch (White Tip)
Part No. FR-12-10-071

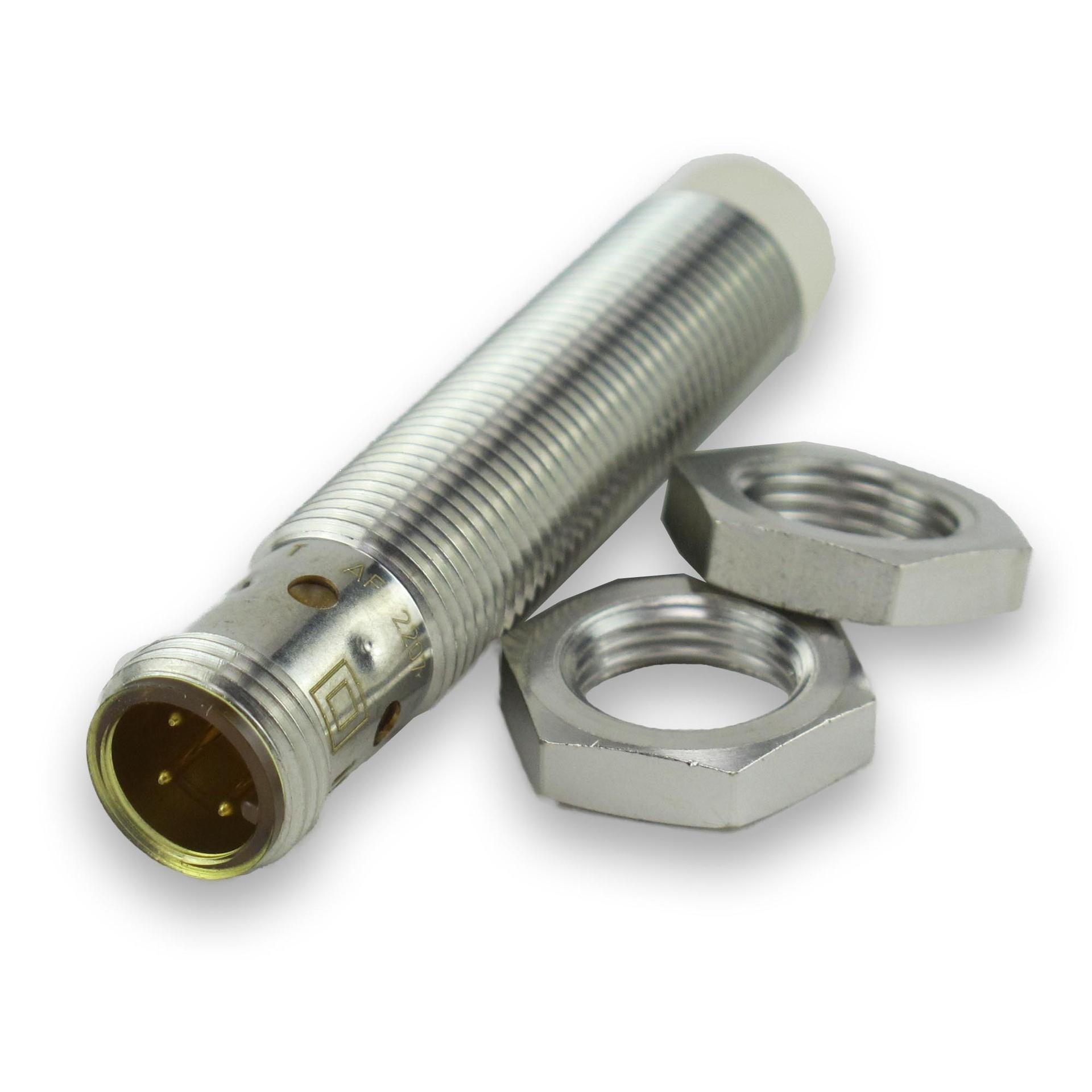

Inductive proximity sensor switch - IF5905 IFK3007-BPKG/US-104(WHITE TIP)
These are the Bonnet and Flywheel sensors.
Inductive sensor; M12 x 1 / L = 60 mm; Sensing range 7 mm non-flush mountable; normally open; DC PNP; M12 Connector; IP 68; ("Coolant"); 3-wire; Ambient temperature -25...70 C; Switching frequency 700 Hz
- Width sensor: 17mm
- Height of sensor: 62mm
- Switching distance: 7mm
- Type of switching output: PNP
- Construction type housing: Cylinder, screw-thread
- Max. output current at protected output: 250mA
- Rated control supply voltage Us at DC: 10 - 36V
- Voltage type: DC
- Material housing: Metal
Inductive proximity sensor switch - IF5905 IFK3007-BPKG/US-104(WHITE TIP)
These are the Bonnet and Flywheel sensors.
Inductive sensor; M12 x 1 / L = 60 mm; Sensing range 7 mm non-flush mountable; normally open; DC PNP; M12 Connector; IP 68; ("Coolant"); 3-wire; Ambient temperature -25...70 C; Switching frequency 700 Hz
- Width sensor: 17mm
- Height of sensor: 62mm
- Switching distance: 7mm
- Type of switching output: PNP
- Construction type housing: Cylinder, screw-thread
- Max. output current at protected output: 250mA
- Rated control supply voltage Us at DC: 10 - 36V
- Voltage type: DC
- Material housing: Metal
